CB Ningbo Technology Co., Ltd

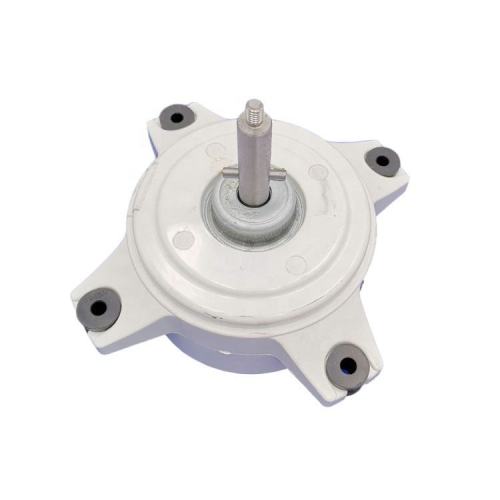

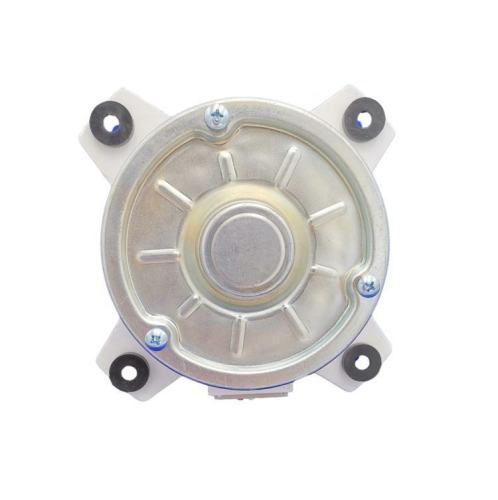

150W DC Brushless Range Hood Motor Kitchen Chimney Motor with Permanent Magnet Construction Resin Packaged DC Motor, China 150W DC Brushless Range Hood Motor Kitchen Chimney Motor with Permanent Magnet Construction Resin Packaged DC Motor Manufacturer
|
| Model: | CB-BLDC-150 |
| Place of Origin: | Zhejiang,China (Mainland) |
| Speed: | High Speed |
| Phase: | Single-phase |
| Structure: | Asynchronous Motor |
| Usage: | Household Appliance |
| Rated Power: | 120---200W |
| Rated Speed: | 1250RPM |
| Winding Material: | 100% full copper, copper coated aluminium or aluminium wire,can be customized |
| feature: | High Efficiency |
| Working condition: | Household |
| Voltage: | DC |
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Unit Price: | 1.0 USD | Production Capacity: | 10000pcs |
| Trade Term: | FOB,CIF,DDP,DAP,EXW | Packing: | Carton |
| Payment Terms: | Paypal, D/P, D/A, T/T, WU | Delivery Date: | 30 days |
| Min. Order: | 100 Piece/Pieces | ||
| Means of Transport: | Ocean, Air, Land | ||
| Model number | CB-BLDC-150 |
| Bearing | ball bearing |
| Voltage | DC |
| Output Power | 150W |
| Rotational speed | 1250RPM |
| Material | full copper, copper coated aluminium or aluminium wire,can be customized |
| Continuous Current(A) | 1.0A |
| Efficiency | IE 1 |
| Commutation | Brushless |
| Insulation class | B |
Product Paramenters
PACKAGING
SHIPMENT
Category: Plastic Sealed/Resin Package Motor
